Level Switch
Prominent Wholesalers and Retailers of quality
Water Treatment Components

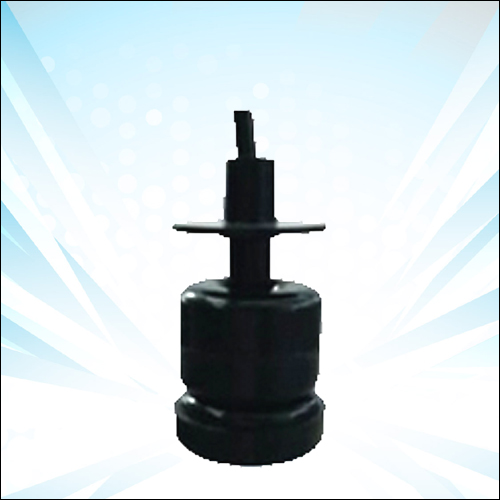

Floaty Level Switch
We are ranked amongst the well-known to offer a broad gamut of Floaty Level Switch. This switch is designed by our adept industry experts keeping in mind the various application requirements of our clients. Further, they make use of finest quality raw material combined with modern technologies in order to fabricate this range. Also, we properly examine this switch after procurement to eradicate any kind of flaws and deliver a perfect range at clients' premises.

General Characteristics:
Mechanical level switch for liquids, The magnet equipped float follows the actual level of the liquid and magnetically triggers a Reed switch in an identified and fixed position. Floaty Level Switch.

Features:
  • Adjustable level differential from 0.5 to 2 meters
  • Case and cable hermetically sealed by plastic injection molding
  • Suitable for sludge/effluent applications
  • Corrosion Free
  • Sturdy and durable need not maintain
  • No current /voltage is passed through water, therefore no electrolysis salt deposition
  • Long life. (Approximate 10 million operations)
  • Rust proof. (Entire sensor body in polypropylene)
  • Can be used in hard water - fuel- such as diesel, kerosene, oil etc


Applications:
  • In overhead tank: Switches ON the pump when the water in the overhead tank goes below the pre-decided minimum level. Switches Off the pump when the water level in the overhead tank reaches the maximum level therefore prevents overflow
  • In underground tank: Switches OFF the pump when the water level reaches the minimum level in the under ground tank therefore prevents dry running. Shall again switch ON the pump when there is sufficient water in the underground tank


Advantages
  • Hermatically sealed and corrosion free.
  • In a single piece we get a change one contact.
  • Can be used in waste water application as the float is in capsulated.
  • Adjustable dead weight to change high and low level setting. Also available in 5mtr./10mtr. Cable length with junction boxes.

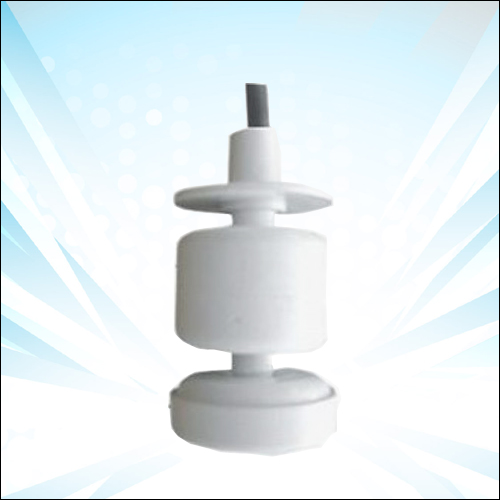

High Level Switch
With the rich industry experience and knowledge, we are able to provide a wide assortment of High Level Switch. This switch is designed and fabricated utilizing high quality raw material in compliance with international quality standards. Our offered range of switch is widely appreciated for its diverse and unique features among our precious clients. In addition, quality controllers of our team examine a procured range on defined parameters to eradicate all the flaws.

General Characteristics:
Mechanical level switch for liquids, The magnet equipped float follows the actual level of the liquid and magnetically triggers a Reed switch in an identified and fixed position.

Features:
  • Two Switches enough to automatically start stop any pump. (coupled with contactor coil)
  • Good repeatability
  • All Plastic construction, corrosion free
  • Non-contact sensing element


  • Compact design enables level sensing within ±5 mm
  • Hysteresis (ON level/OFF level) can be easily set at site by locating the level switch up/down along the side walls of the tank
  • Suitable for clean liquid

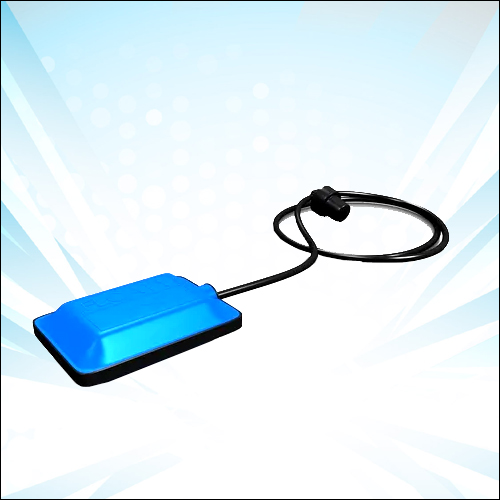

Low Level Switch
We are listed as the renowned to offer an excellent quality gamut of Low Level Switch. Our entire product range is designed and manufactured by our highly skilled technicians using premium grade factor inputs in accordance to the set industry norms. This switch is extensively used in drinking water to sewage, tanks and basin level control and also to protect overfill situations. Moreover, the offered switches are available in various specifications and can also be customized as per the details specified by our clients.

General Characteristics:
Mechanical level switch for liquids, The magnet equipped float follows the actual level of the liquid and magnetically triggers a Reed switch in an identified and fixed position.

Features:
  • Two Switches enough to automatically start stop any pump. (coupled with contactor coil)
  • Good respectability
  • All Plastic construction, corrosion free
  • Non-contact sensing element


  • Compact design enables level sensing within + 5 mm
  • Hysteresis (On level/Off level)can be easily set at site by locating the level switch up/down along the side walls of the tank
  • Suitable for clean liquid

Offer a Broad Range of Components such as
Vessels, Dosing pumps, Instruments, Switches, Control Panels and Testing Kits
