Dosing Pump

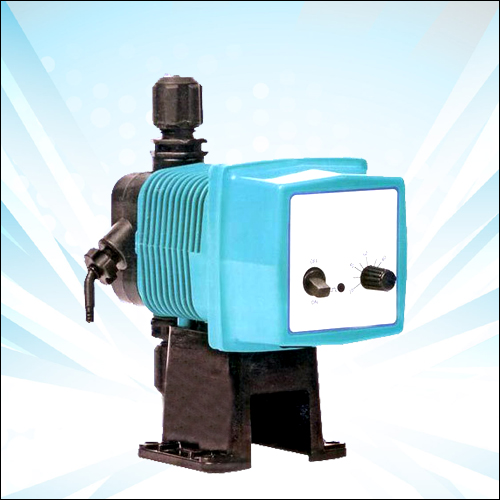

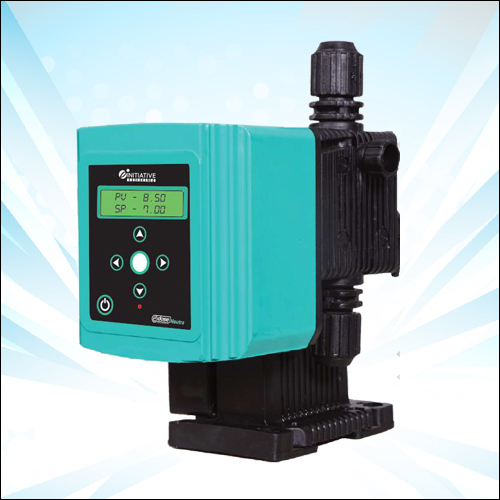

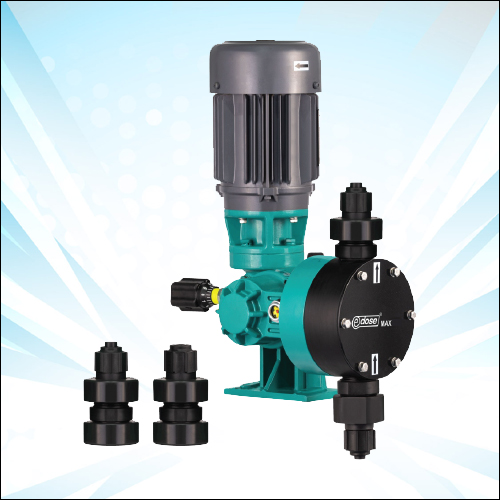

E-Dose :- With the help of our team of professional experts, we try to provide our clients with the best products. We are involved in offering a high quality range of E-DOSE to our esteemed customers at competitive prices. The complete range of E-DOSE is fabricated at our vendors' end using high grade material and latest technology


Technical Specification
  • Electrical : 230v A.C. 50 Hz
  • Suction tubing : 4/6 mm
  • Discharge tubing : 4/6 mm
  • Dosing rate : 3 / 6 / 12 lph at 4 kg/cm2
  • Strokes / Minute : Max 400
Material of Construction
  • Pump Head : Glass filled Noryl
  • Diaphragm : Teflon
  • Connectors : ABS / PP
  • Suction Tubing : PVC / PP
  • Discharge Tubing : PVC / PP
Specifications
  • Electrical : 230 VAC,50HZ
  • Suction Tubing : 4/6 MM.
  • Discharge Tubing : 4/6MM
  • Dosing Rate : 3/6/10 LPH AT 4KG/CM2.
  • Stroke : MAX-400,MIN—60/50
  • Fuse : 600mA
  • Level Switch Interlock : Normally Open
  • Relay Output : Normally Open With
  • Input : 4-20mA, 0-5 VDC
  • Acid % : 33 HCL/H2SO4

Vessels


Composite Pressure Vessels have the following Specifications,


Technical Specification
  • Top Opening : 2 1/2"
  • Max. Oprated Pressure : 4KG/CM2
  • Max. Temprature : 50 C
  • Optional Opening : 4" WITH ADOPTER
  • Riser Pipe : 10 KG/ M2 RIGID PVC 25 MM O.D.
Models in LLDPE Vessels
  • 10 LTRS.(D-155MM,H-595MM)
  • 15 LTRS (D-200MM,H-645MM)
  • 30 LTRS (D-200MM ,H-1145MM)
  • 55 LTRS (D-265MM, H-1360MM)
  • 80 LTRS (D-340MM, H-1210MM)
  • 105 LTRS (D-400MM, H-1130MM)
  • 140 LTRS (D-400MM, H-1480MM)
  • 200 LTRS (D-520MM, H-1300MM)

Multiport Valve


We offer a highly efficient range of 1/2 inch to 3 inch Multiport Valves, which are fabricated using quality material and offer 40% higher flow. These valves have the inlet and outlet in precisely same axis and are built in unions. Our range finds application to fit in all types of vessels without adapters.


Application:
  • For Sand / Carbon / Multimedia / Softners
  • For Up flow / down-flow service and down-flow regeneration type Softeners / Demineralisers .
Technical Specifications
  • Inlet / Outlet, 1/2 Inch to 3 Inch for filter and Softners and DM
  • Power Water Connection 1" BSP male
  • Maximum Flow Service / rinse / backwash 35 m3/hr @ 0.5kg/cm2 Pressure Drop
  • Maximum Operating Pressure 5 kg/cm2
  • Minimum Pressure for uniform suction 2.0 kg/cm2

Under Water Light / Led / Halogen Bulb


LED OPTIONS

Cool / Warm White
Available in cool white, warm white and blue LED in 7.2 and 14.4 Watts Configuration.

RGB
Also Available with 12V, 100 Watt halogen bulbs.


SPECIFICATIONS
  • Nicheless underwater light
  • 12V, 100 watts halogen bulbs
  • Tough, good looking - perfect for pools, water parks, fountains etc.
