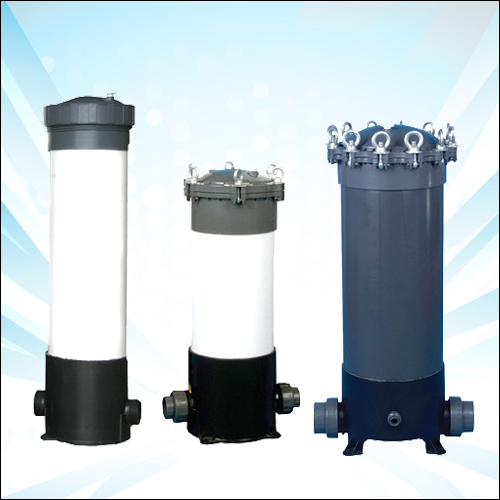

Cartridges Housing


Being the leaders in the industry, we offer CARTRIDGE HOUSING to our prestigious customers. It is available with a cap and has enough space to refill cartridge that is used for purifying water. They are easy to install and is manufactured using premium grade raw materials that is sourced from known and trusted dealers. These housings are available in different specifications and can be customized as per the requirements.
Spun PP
Spun ployproplyne fibre cartridge for removing sediment particles such as sand, rust, silt & so on.the percolation precision is from 1 micron to 50 micron.used in water, chemical ,pharmacy,& is resistant to becterial growth.the operating temprature should be below 60 c.
SIZES : 10",20",30",40" 10" BB & 20"BB IN 1/5/10 MIC.
Melt Blown
Polyproplyne fibre cartridge for removing sediment particles such as sand, rust, silt & so on.the percolation precision is from 0.5 micron to 10 micron.used in water, chemical ,pharmacy,& is resistant to becterial growth.the operating temprature should be below 60 c.
SIZES : 10", 20" & 30" NORMAL
Absolute Pleated
Pleated polyproplylene filter cartridge with cage,economical resuable filter cartridge for removing sand, salt, rust & many chemicals & mechanical impurities. The percolation precision is from 0.22 micron to 0.45 micron.it can be used in water ,chemical ,pharmacy ,beverage & so on.it can be reused by washing with pressurized water.the operating temprature should be below 60 c.
SIZES : 10" & 20"
Granular Activated Carbon
Garnular activated carbon :it is made of high density granular coconut shell carbon (or granular fruit shall carbon with silver).it is adsorbe chlorine & other volatile chemicals, coloring matter contamiation from the water.it is also improves the taste, color & smell of the water.
SIZES : 10" & 20"
String Wound
String wound cartridge for removing sediment particles such as sand, rust, silt & so on.the percolation precision is from 5 micron to 10 micron.used in water, chemical ,pharmacy,& is resistant to becterial growth.the operating temprature should be below 60 c.
SIZES : 10", 20" , 30" & 10" BB, 20" BB
Pleated
Economical resuable filter cartridge for removing sand, salt, rust & many chemicals & mechanical impurities. The percolation precision is from 5 micron to 30 micron.it can be used in water ,chemical ,pharmacy ,beverage & so on.it can be reused by washing with pressurized water.the operating temprature should be below 60 c.
SIZES : 10", 20",40" & 10" BB , 20" BB
Carbon Block (CTO)
Carbon block (cto) :it is made of high density activated carbon & the percolation precision is 1,5,10 micron.it removes heavy chlorine & coloring matter contamination, heavy metals, psticides & other chemicals. It also improve the color, smell & test of water.
SIZES : 10" , 20" & 10"BB ,20" BB

Types:
  • Standard Filter Housing
  • NSF Listed, FDA Grade Polyproplyene or Acrylic Styrene/san Material.
  • Applications: Home Use Ro System,Countertop Filtration For Drinking,Cooking,All Food Applications, Lab Service & Vending M/C
  • Supplied with /without pressure release valve to release air & with 3/4",1" or 1/2" opening.flow rate are based on cartridge selection & fluid viscosity.brass & non brass connection to match flow ratings & piping configurations.
  • Max. Pressure : 125 PSI
  • Max. Temprature : 50 C
