Digital Flow Meter
Prominent Wholesalers and Retailers of quality
Water Treatment Components

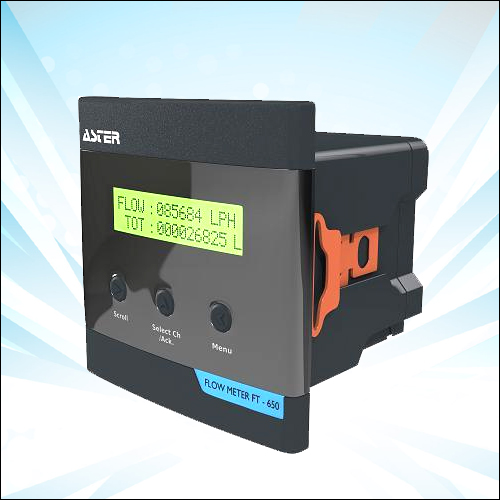

Item Code: FT-650
(LINE SIZE 1”/2”/3”/4”/6”/8”)
We are an unparalleled name in offering a premium quality Digital Flow Meter. This meter is designed and manufactured under the guidance of skilled professionals using the optimum grade component as per the set industry norms. In order to ensure quality, this product is tested on various predefined parameters. We offer this product in different dimensions and specifications to meet the varied needs of clients' at a leading market rate within the promised time frame.

Features :
  • Digital flow meter measuring flow rate from 0.05 m3 / hr to 500 m3/hr
  • Combined indicator, Totalizer, Batcher, Rate switch
  • Dual sensor, dual line, single meter, for RO applications
  • Remote reset. (auto/manual)
  • Optional computer interface with RS485 / RS232
  • 4-20 mA output


Options:
  • BATCHER AND TOTALIZER - Relay gets energized after a fixed quantity of water passes through the sensor. The batcher has a auto reset, manual reset & dual relay operation facility. Batch quantity counts downwards till zero value.
  • FLOW COMPARITOR - The meter is supplied with two sensors for RO permeate and reject line. The meter displays both the flow rates and calculates percentage recovery.
  • RATE SWITCH MODE - The relay is programmed to get energized whenever actual flow falls below the set value. Display shows "LOW FLOW RATE"
  • COMPUTER INTERFACE - RS 232O/P which can be directly connected to a serial port printer or PC to record data with date and time. RS485 O/P with interface box for multi channels data logging.(max 32 channels)
  • PULSER - Meter can be configured to any metering /dosing pump. Chemical dosing can be done on-line proportional to flow.
  • Optional Data Logger - The flow meter is available with data logger option where flow rate & total flow with date and time is stored in a 2GB Memory card

Offer a Broad Range of Components such as
Vessels, Dosing pumps, Instruments, Switches, Control Panels and Testing Kits
