New Launch
Prominent Wholesalers and Retailers of quality
Water Treatment Components

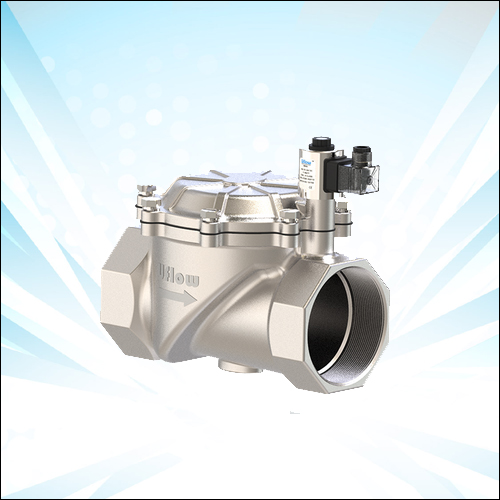

Pilot Operated Diaphragm Type Solenoid Valve (NC)
Valve Information
  • Port:
  • Refer below technical data sheet (Available BSP / NPT)
  • End Connection:
  • Screwed / Flange
  • Body Material:
  • SS ASTM A351 Grade CF8 / CF8M, Forged Brass
  • Diaphragm & Media Temp:
Nitrile(NBR)EPDM Viton(FKM)
-30°C to 90°C -10°C to 140°C-10°C to 180°C
  • Circumstance Temp:
  • -10° C to 70° C
  • Media:
  • Steam, Hot Water, Hot Fluid, Water Oil
  • Main Features:
  • Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.
  • Operating Voltage & Power Consumption:
24AC110AC 230AC12DC 24DC
7W8W 8W10W11W
  • Optional
  • 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
  • Other Specification Data:
  • Available on Request
Coil Information
  • Coil Features:
  • High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
  • Coil Housing:
  • Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure
  • Note:
  • Use of filter in the inlet port is recommended.
Request a Quote

Control Dosing Pump

Features
  • Automatically Compensate For The Changes In Feed Ph
  • With PID Logic-Most Accurate And Stable Controller
  • Level Switch Interlocxk.
  • Also Available iN pudf For Sulfric Acid Applications.
  • RS 485 Output (Optional)
  • Bulid In ARV With Separate Discharge Point To Prevent Chemical Spillage.
Request a Quote

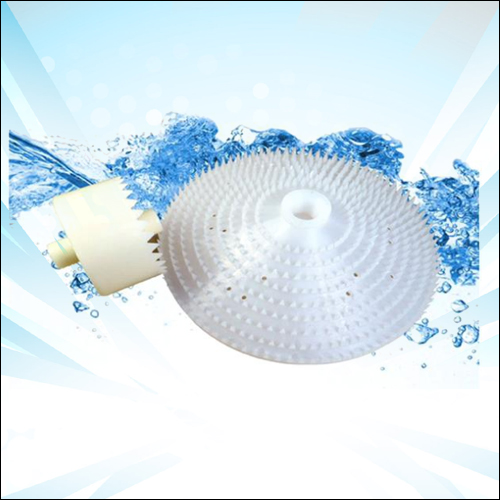

Disc Diffuser Coarse Bubble
Product Introduction
Rotary mixing diffuser device a new type of aeration device. It has spiral aeration and divergent aeration thus improving the aeration efficiency.
Request a Quote

Salient Features:
  • Corrosion Resistance.
  • High oxygen transfer ratio.
  • Non - Clogging.
  • Easy installation.


Technical Specifications:
  • Model : Dia260/280/300mm
  • Material : ABS, Nylon
  • Air exhaust flow : 1. 8 M3/Hr. - 6 M3/Hr.
  • Water depth : 4 - 8M
  • Service area : 0.5 - 0.8 M2
  • Oxygen transfer rate : 18.5 - 23.5%
  • Oxygen transfer capacity : 0.165 Kg/h
  • Resistance / Head loss : <30Pa


Tube Diffuser Fine Bubble
ECO Panel is user friendly, plug and play control panel with plant operation pre-programmed and all safeties inbuilt. These panels along with the required level and pressure switch help in making the entire plant completely automatic.
Product Introduction
High oxygen Aerator Membrane Fine bubble Disc Diffuser features a unique split pattern and slit shapes, which help disperse air bubbles in extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated, check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
Salient Features
  • High oxygen exchange capacity with remarkable energy - saving effect. Has a long service life 015- 8years.
  • Power efficient with low energy consumption, saving about 30% of operating cost compared with general diffusers available in the market.
  • Unique and uniform air distribution structure with tight bubble formation.
  • The open design of the aeration support reduces the impact of buoyancy on the aerator body thus increasing the diffuser life significantly.
Request a Quote
ModelDia. 63Dia. 93Dia.113
MOCEPDM/Silicon membrane ABS tube EPDM/Silicon membrane ABS /PP carrier plate EPDM/Silicon membrane ABS /PP carrier plate
Length500/750/1000 MM500/750/1000MM 500/750/1000 MM
Connector3/4 NPT3/4 NPT3/4 NPT
Flow range2-14 M3/h5-20 M3/h 6- 28 M3/h
Bubble Size1 -2 MM1 -2 MM 1 -2 MM
Service Area0.75 - 2.5 M21.0 - 3.0 M21.5 - 3.5 M2
Service Life>8 year>8 year >8 year

Cooling Tower Dosing System
  • Option To Dose Three Chemicals & Bleed Off Valve
  • Complete With Sampling Line Piping
  • Pvdf Dosing Pumf For Handling H2SO4
  • Compact In Size (Wall Mounting)
  • Rs 485 modbus for data Logging (optional)
Request a Quote

RO Panel
RO Panel is user friendly, plug and play control panel with plant operation pre-programmed and all safeties inbuilt. These panels along with the required level and pressure switch help in making the entire plant completely automatic.

Key Attributes
  • Complete RO LOgic programmed.
  • MIMIC diagram with different colored LEDs for I/O indication.
  • 4 digit LED dispaly
  • No need for programming
  • Flushes the membrane during starting and stopping, take cares of required motor protection such as overloaded/single phasing.
  • Auto/manual facility (even in manual mode motor protection doesn't get bypassed).
  • Easy overload current settings through knob.
  • Individual switch to start/stop raw water and high pressure pump in manual mode.
Request a Quote

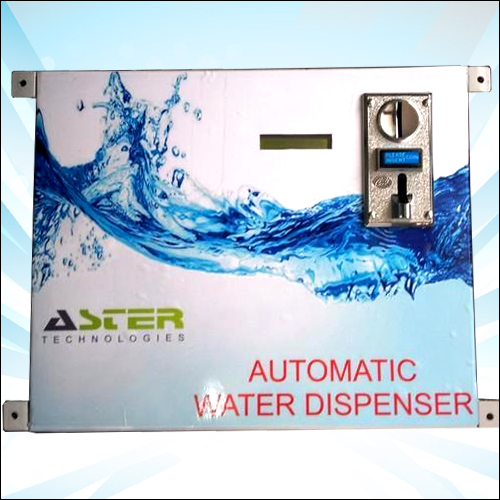

Coin Based Water Dispenser
The coin based automatic water dispenser has a coin mechanism, controller, flow sensor and solenoid valves.

Key Attributes
  • Hassle free uninterrupted water purifier 24x7.
  • Dispenses exact quantity of water in batch.
  • No need of operator for water filling.
  • No need of external recharge unit.
  • Low power consumption can even work on UPS.
  • Dual line backlit display for: Dispenser status : Number of jars dispensed and cash collected.
Request a Quote



EDOSE MEGA
Request a Quote



Standard Features:
  • Backlit LCD Display
  • Solid PTFE diaphragm for longer life
  • Double ball NRV
  • Built-in ARV
  • User friendly knob for adjusting dosing frequency
  • Batch and interval dosing options


Technical Specifications:
  • Electrical 230v Ac, 50HZ
  • Suction tubing: 8/10 mm
  • Discharge tubing : 8/10mm
  • Dosing rate : 40lph @ 3kg/cm2
  • Strokes/min : Max. 120

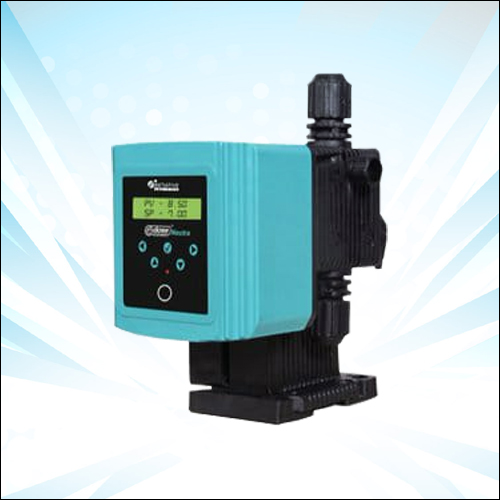

EDOSE NEO
Optional Advanced Features :
  • Level switch interlock
  • 4 to 20 mA input
  • Pulse input
  • Relay output
  • Backlit LCD Display
  • User friendly knob linked with dogital display for adjusting dosing frequency with facility of password lock
  • Dosing head conveniently located next to front controls for easy maintenance access
  • Built-in ARV with separate discharge point to prevent chemical spill on hands
  • Double ball NRV
  • Diaphragm made of solid PTFE to ensure maximum life
  • Batch and interval dosing features
Request a Quote
EDOSE PRO
Request a Quote



Features :
  • Two linebacklit LCD Display
  • All advanced features of the NEO are standard in the PRO version
  • Additionally s RS 485 MODBUS compatible output allows remote management and contol


Technical Specifications:
  • Dosing rate@4kg/cm2 1.5, 3.0,6.0 & 10.0lph
  • Suction/Discharge tubing 4/6mm
  • Frequency up to 350 spm
  • Electrical 230 V AC, 50Hz
  • Power consumption at 350 spm 30watts

Offer a Broad Range of Components such as
Vessels, Dosing pumps, Instruments, Switches, Control Panels and Testing Kits
